A fully concealed UST cabinet with a rotating projector mechanism.
The Maxlight MPC500R is a premium motorised UST projector cabinet designed to hide the projector, floor-rising screen and cabling when not in use. Its central rotating flip-out mechanism moves the projector into position, creating a clean furniture-style installation for modern laser TV and home cinema rooms.
Check projector, screen and cabinet dimensions carefully
The MPC500R is designed for compatible UST projectors from 0.16:1 throw ratio and above. Final compatibility depends on projector dimensions, cable position, ventilation clearance, screen size and room layout. The projector and floor-rising screen must be powered through the cabinet system for synchronised operation.

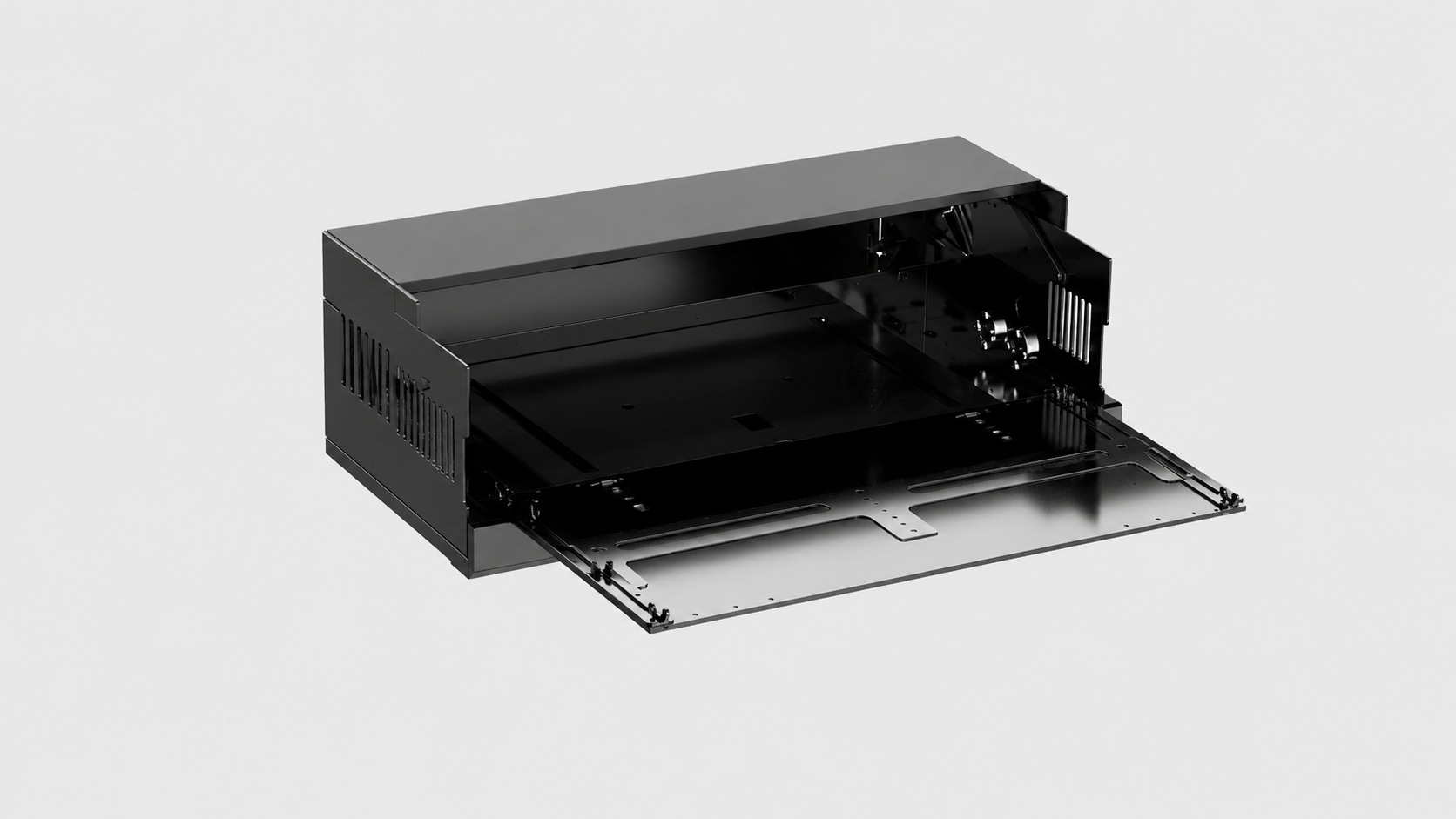

Rotating flip-out design, not a simple sliding tray.
The MPC500R uses a central rotating projector bay. Instead of only sliding forward, the mechanism rotates the projector into its working position, helping the cabinet support very short UST projection geometry while keeping the projector fully hidden when closed.
- Central rotating projector bay
- Designed for UST projectors from 0.16:1 throw ratio and above
- Compact 500mm cabinet depth
- Side-to-side airflow path for ventilation

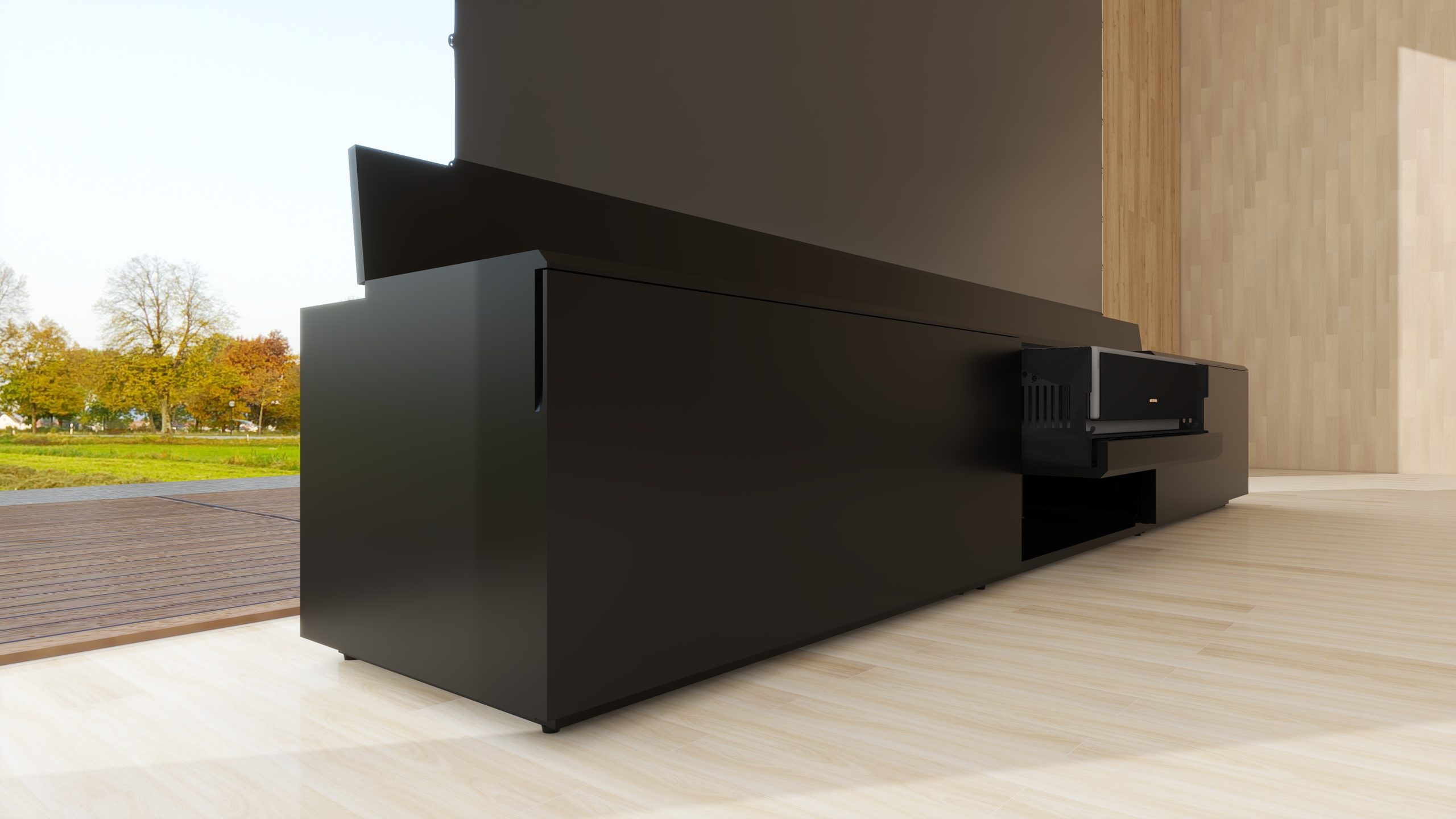

Engineered to conceal and reveal
The centre section rotates the UST projector into position when the system opens, then hides it neatly inside the cabinet when closed.
Synchronised one-touch cinema operation.
When the projector powers on, the cabinet opens in sequence: the centre projector section rotates into position, the screen cover opens, and the floor-rising screen elevates. When the projector powers off, the entire process reverses and the system closes with the same clean sequence.
- Projector, centre section, screen cover and floor-rising screen move as one system
- Projector and screen remain hidden when not in use
- Creates a clean furniture-integrated cinema setup
- Designed for living rooms, media rooms and premium UST installations

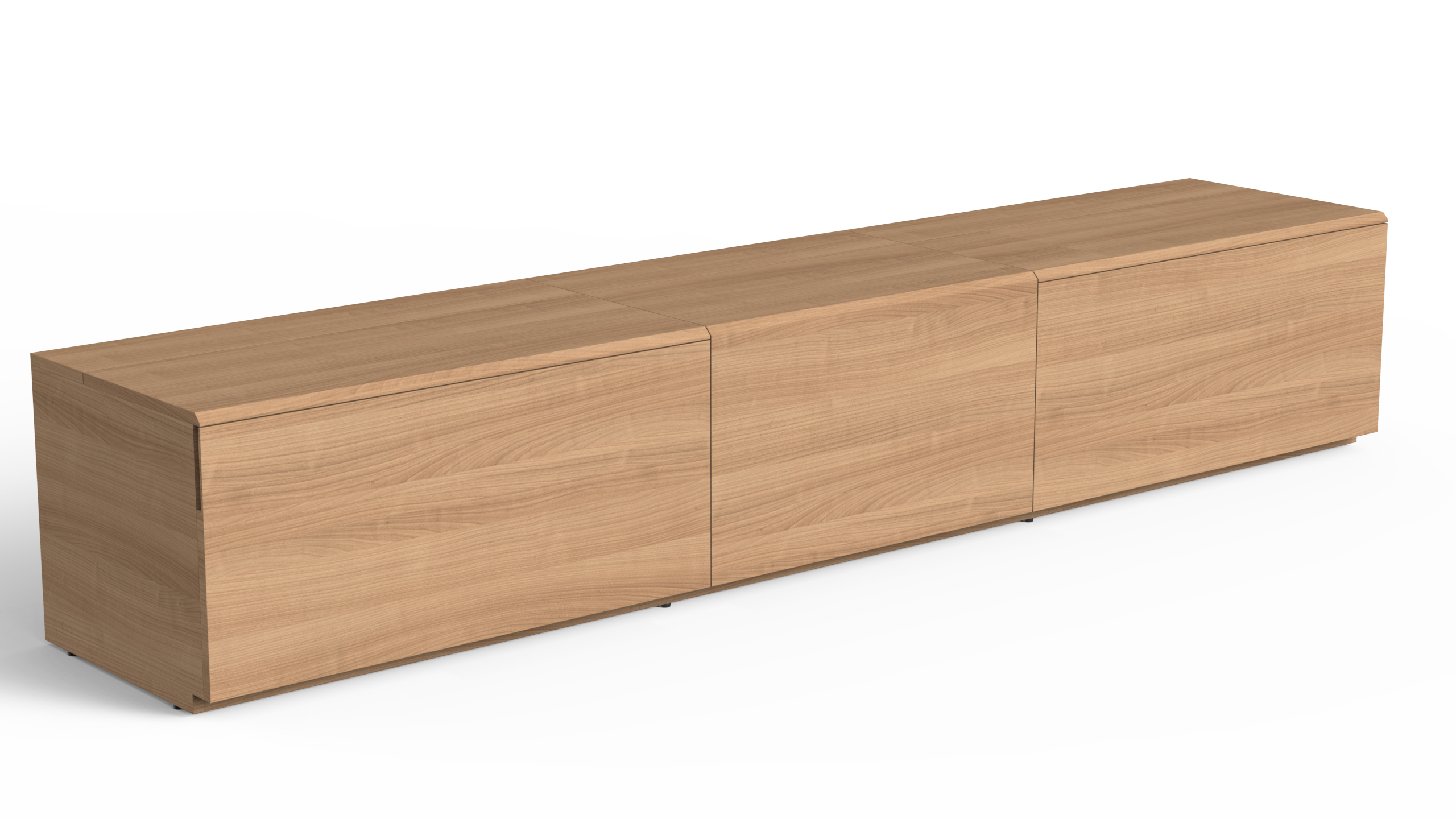

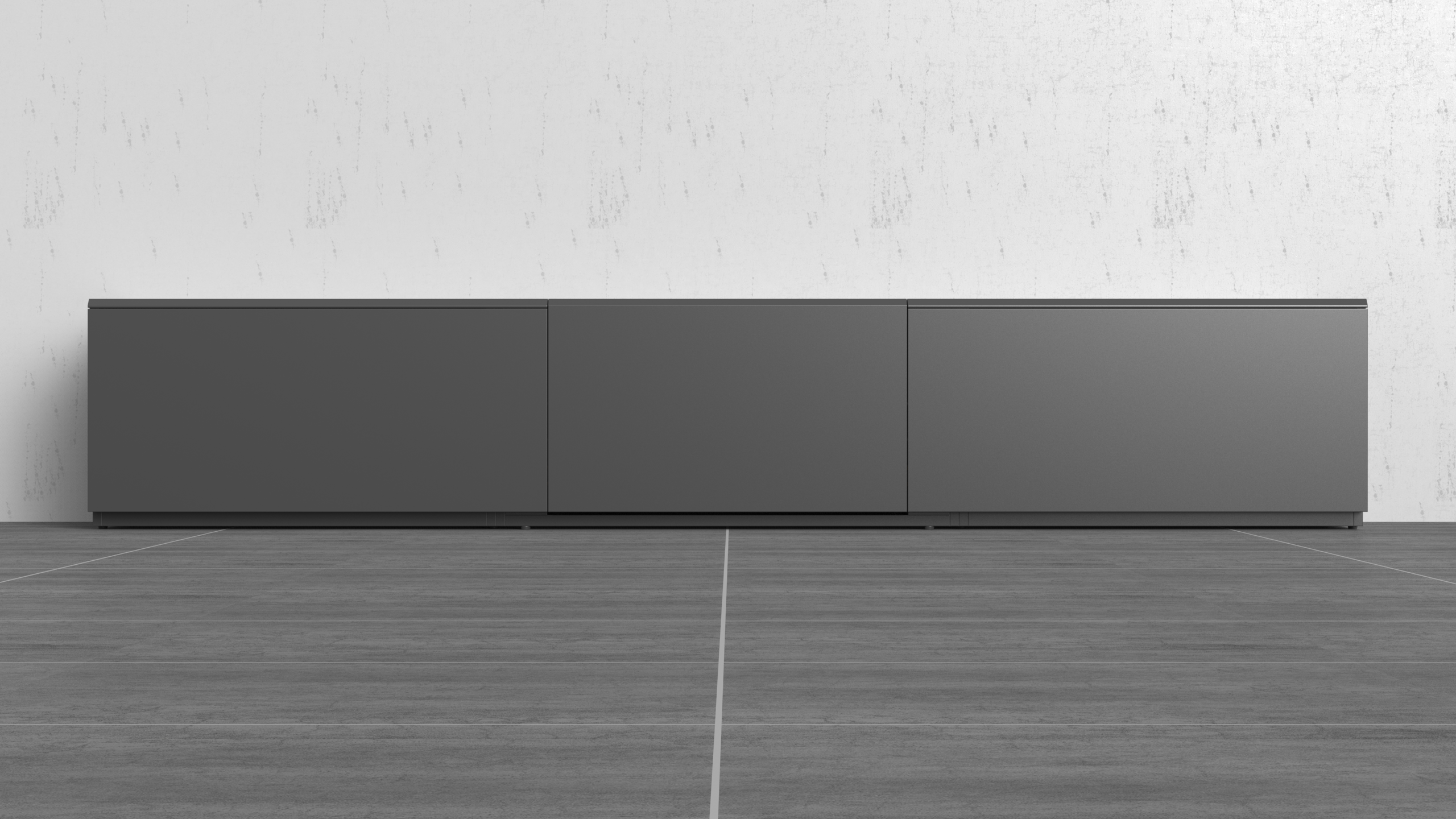

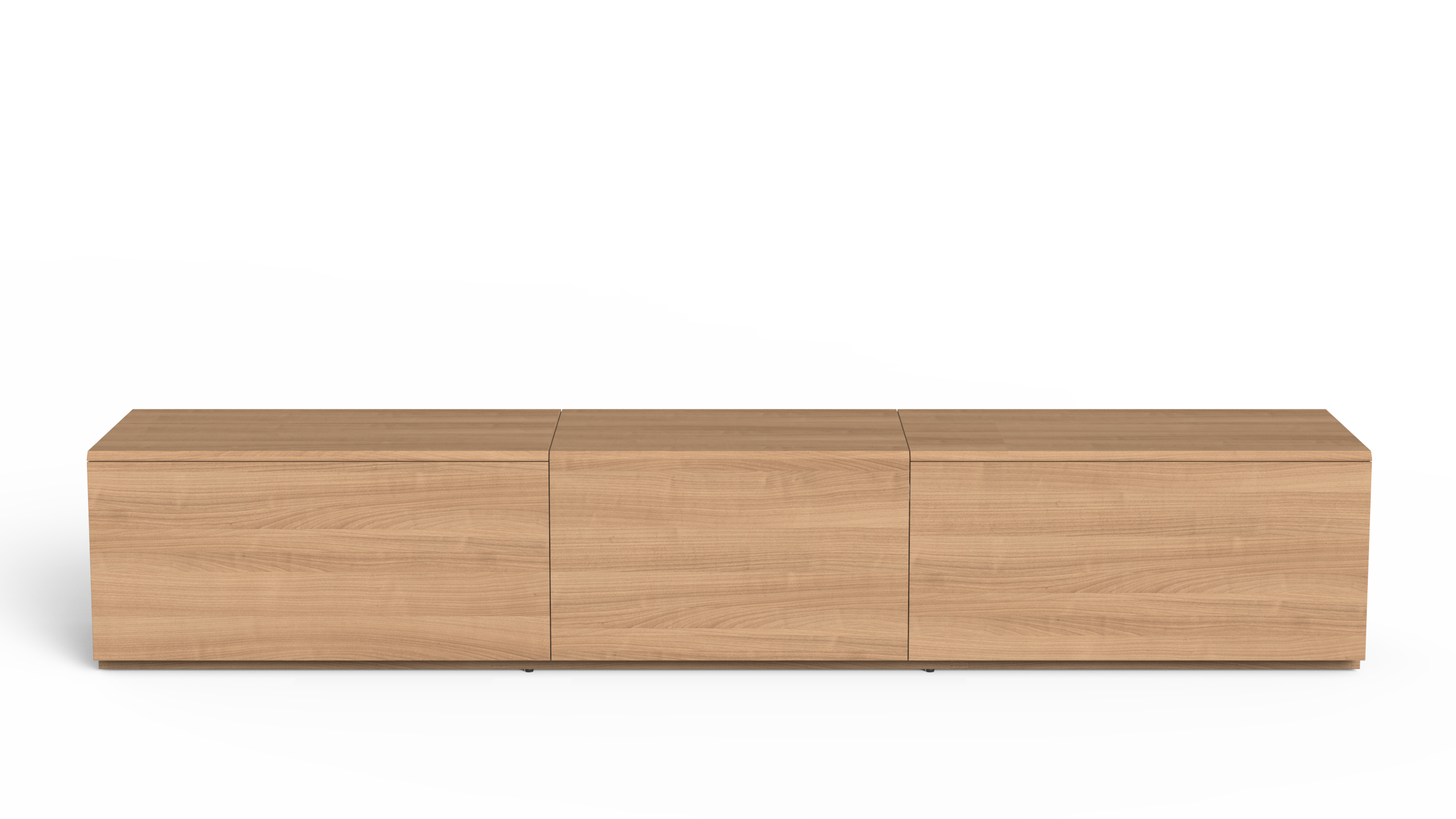

Fully concealed
The projector, screen and cables are hidden inside the cabinet when the system is closed.
MaxRemo app
Bluetooth app control supports fine adjustment, manual opening and power detection settings.
Modular options
Standard 100″ and 120″ versions are available, with extended side cabinet options depending on project requirements.

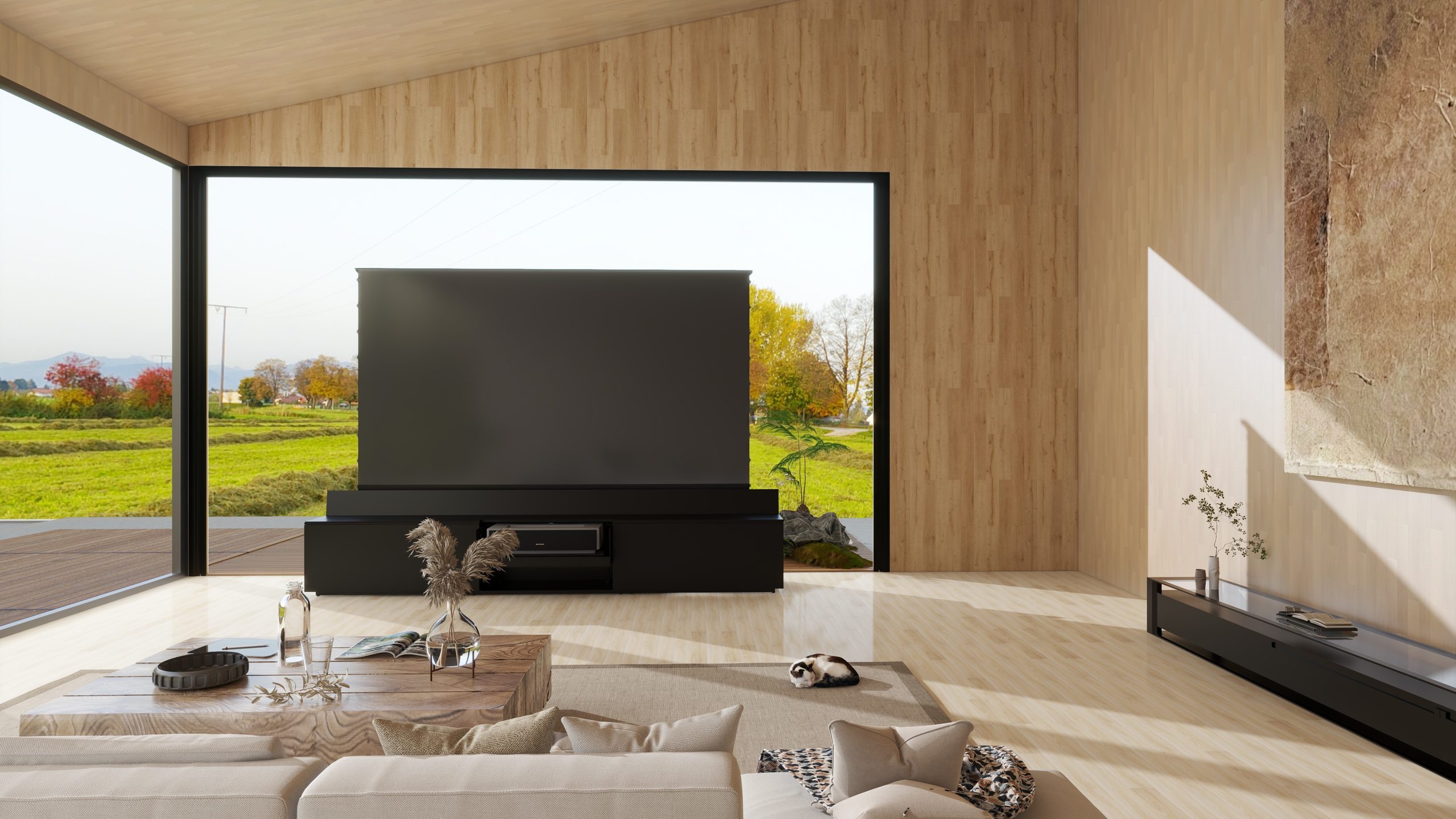

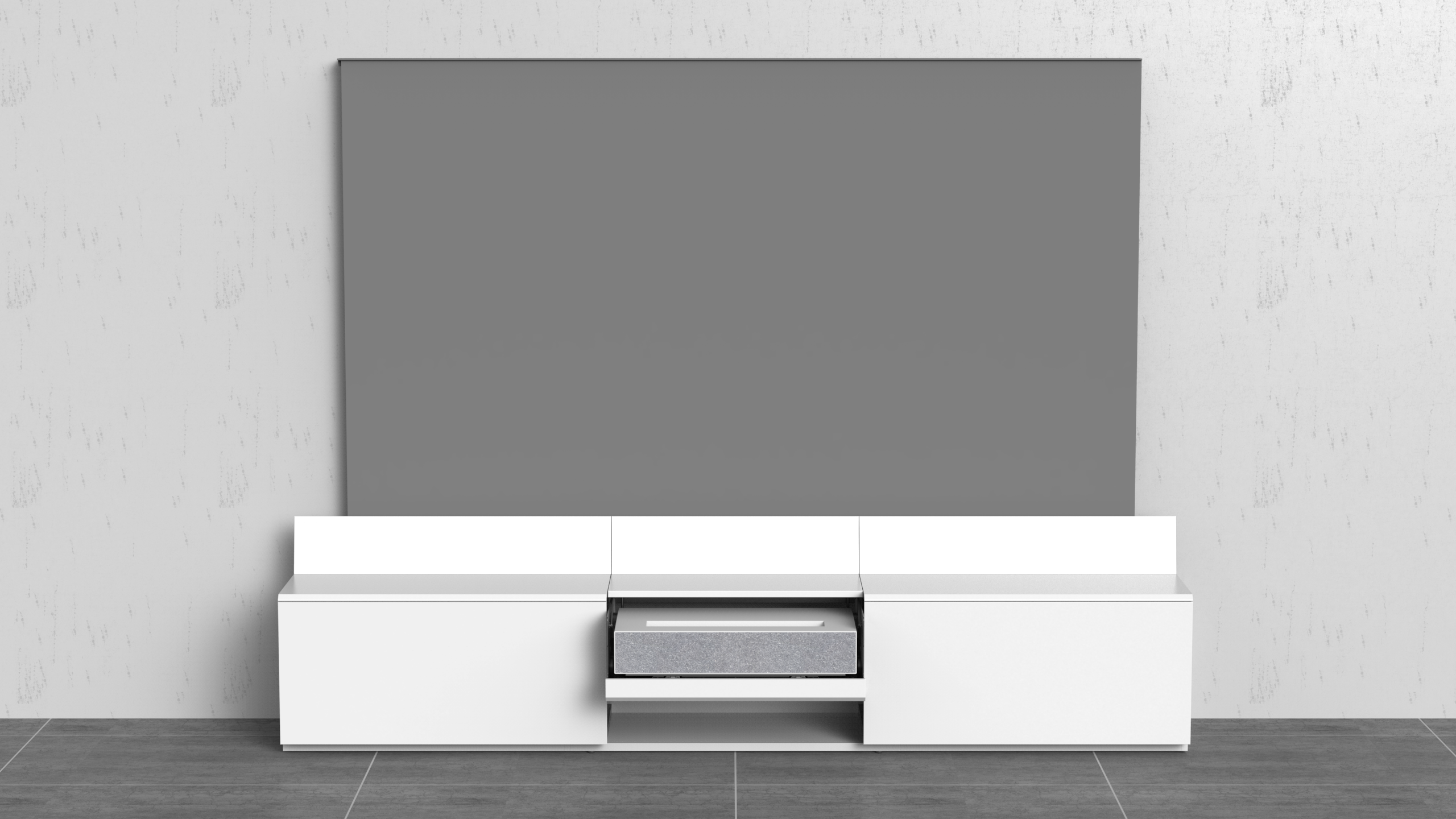

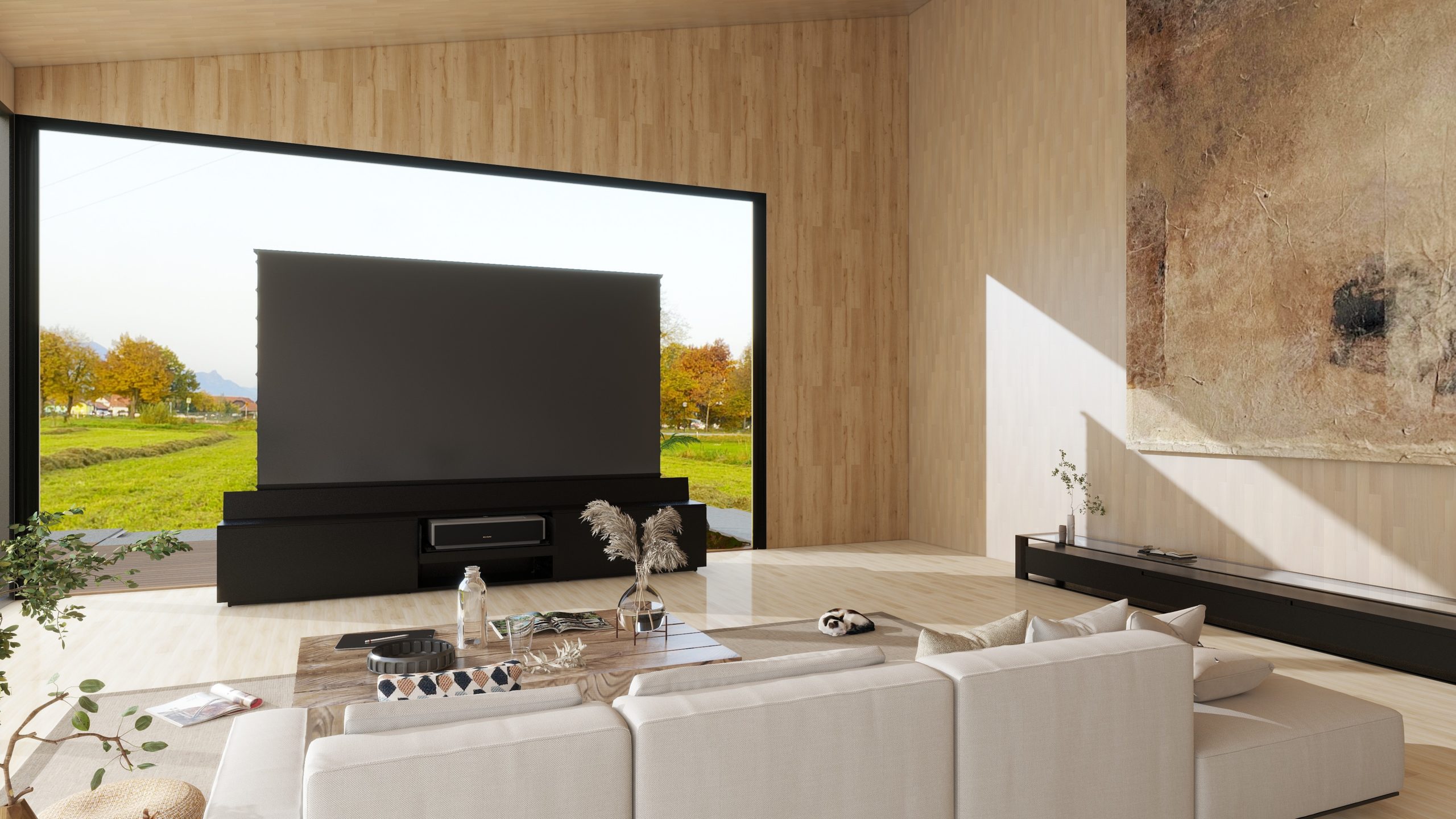

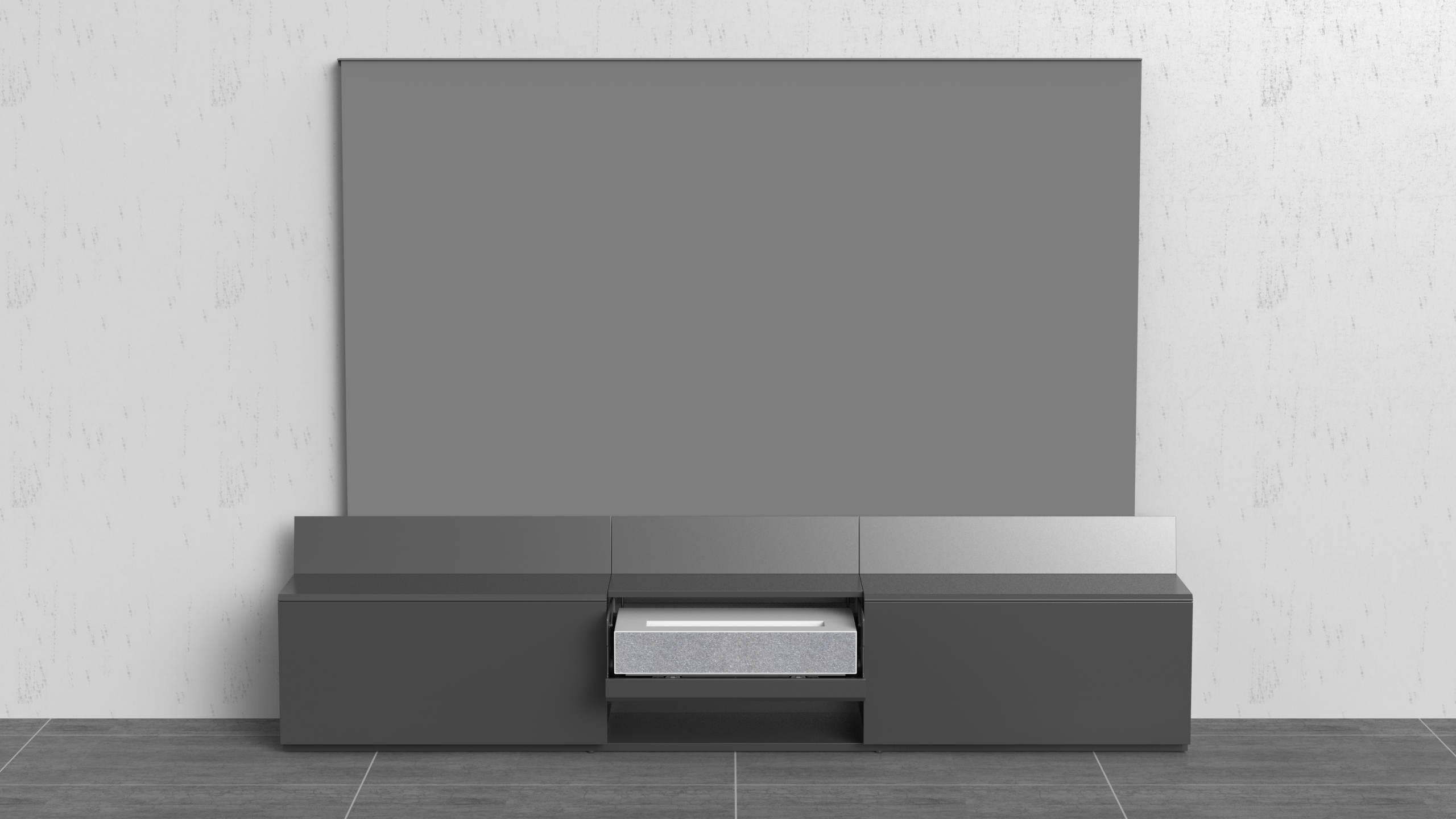

Clean open-state view
The cabinet presents the projector and floor-rising screen as a single integrated system when opened.

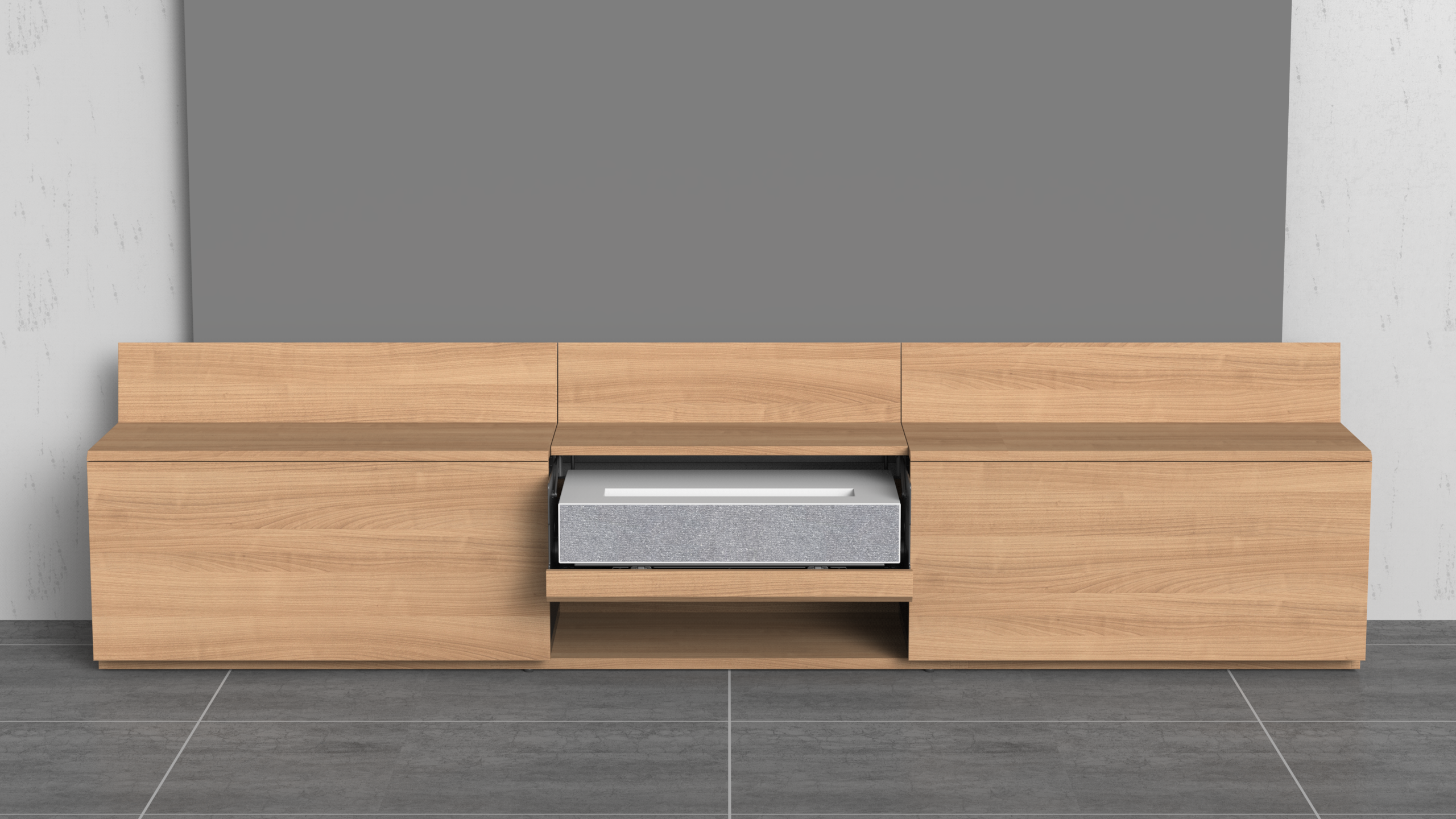

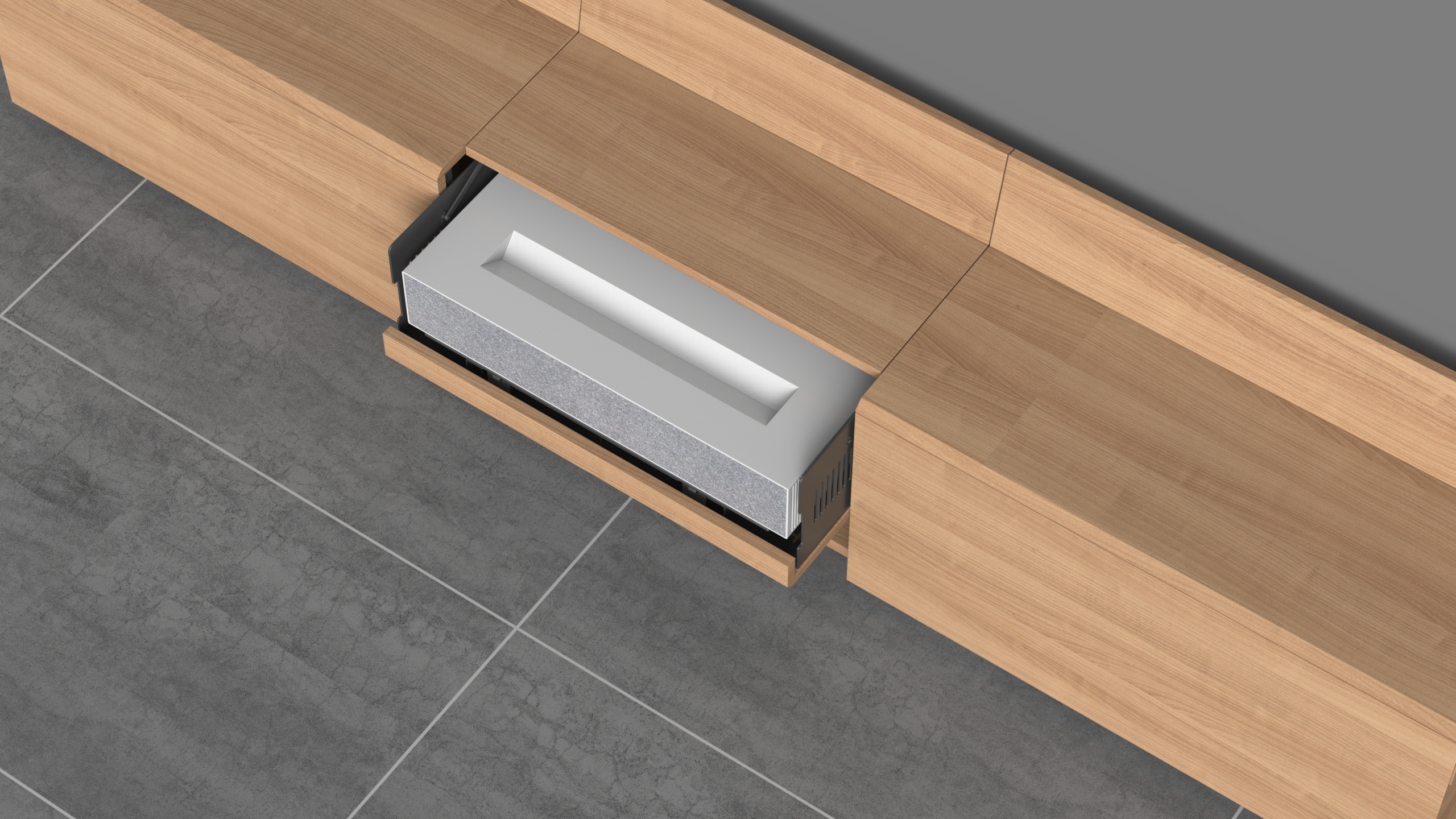

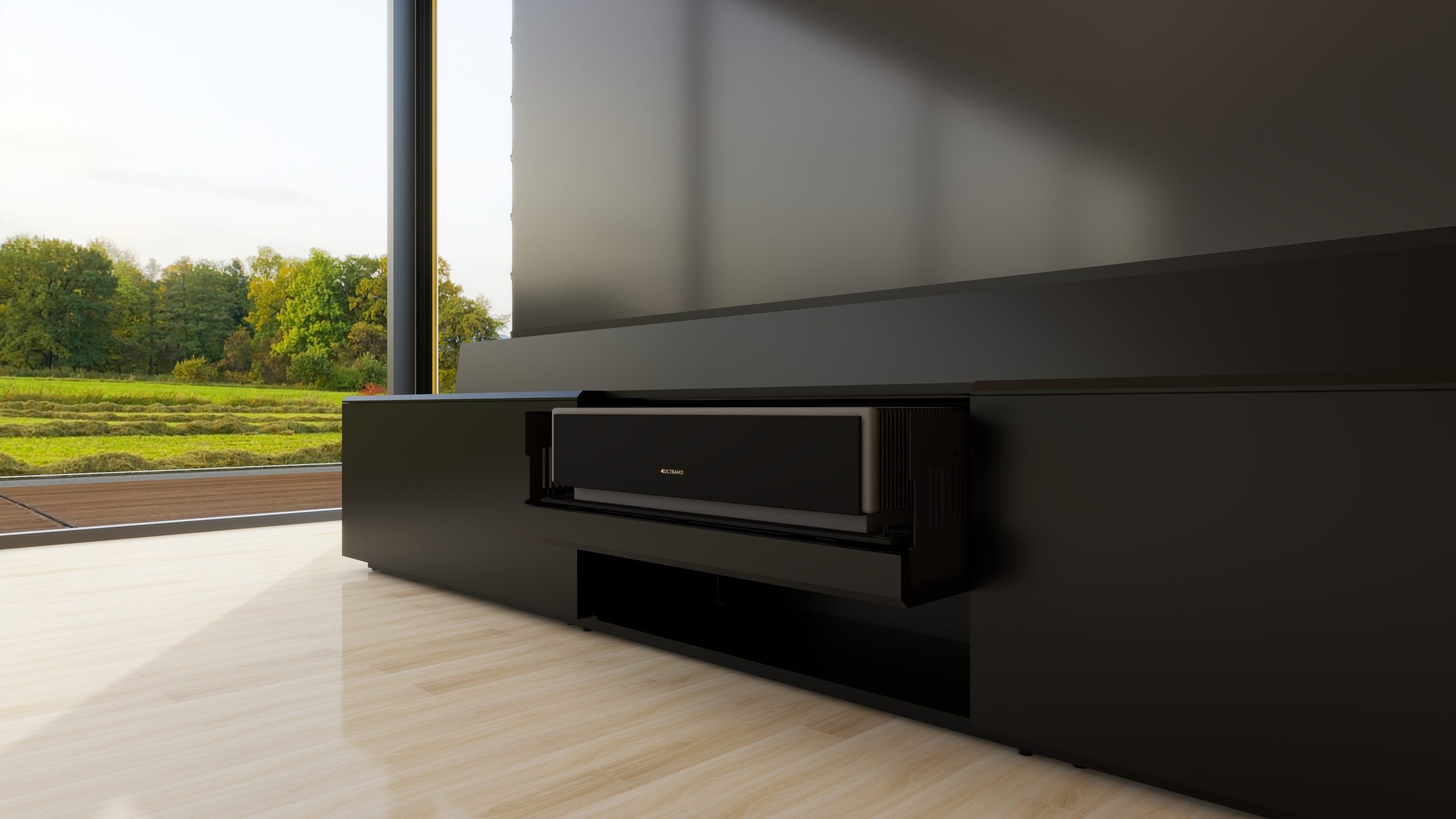

Central projector bay
The central bay is engineered around the rotating projector movement and ventilation requirements.

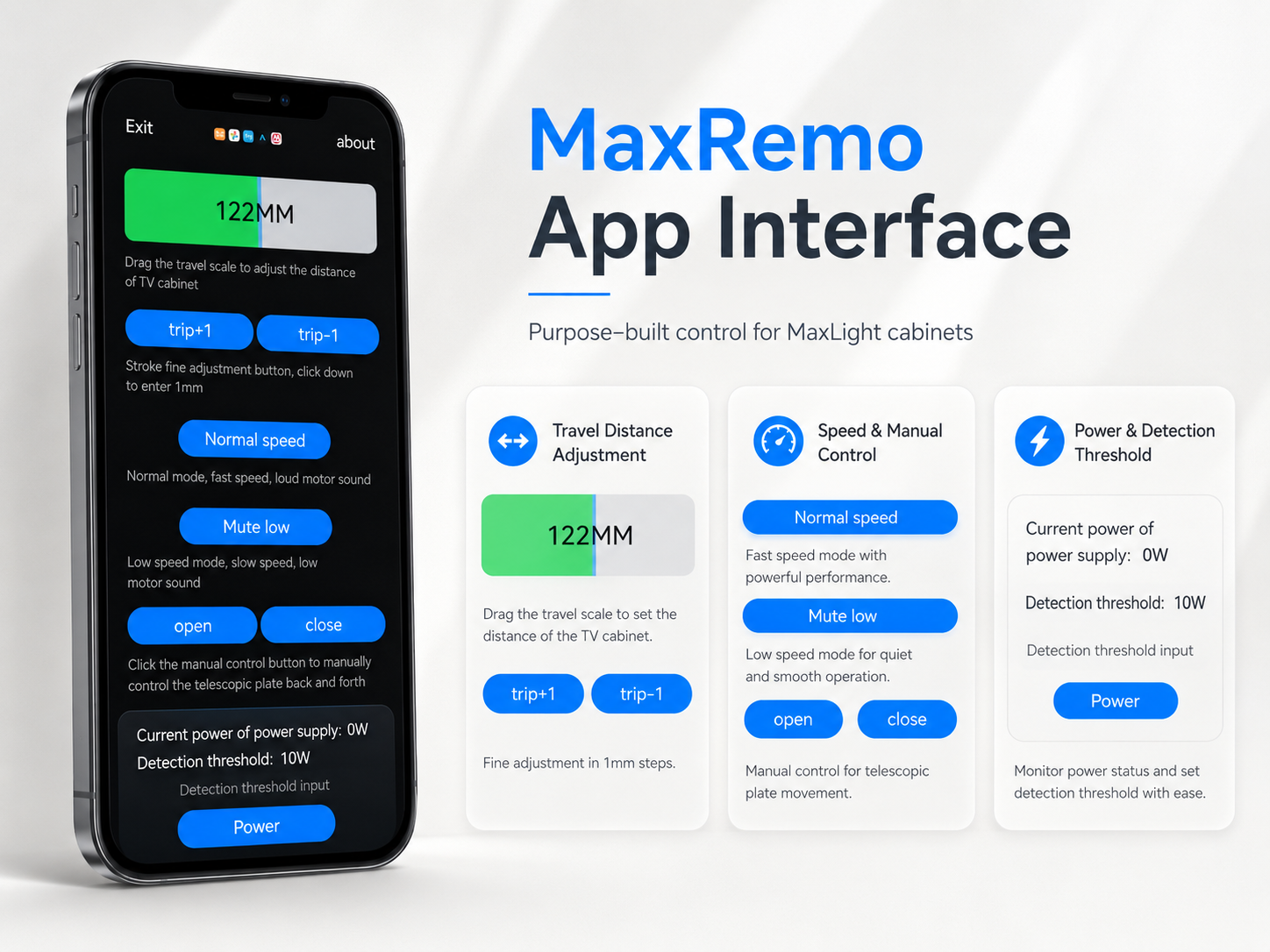

MaxRemo app control
Use the app to adjust travel distance, operate the cabinet manually and fine-tune power detection behaviour.
Fine adjustment for long-term projector flexibility.
MaxRemo is built for Maxlight projector cabinets. It connects by Bluetooth and gives direct control over setup, movement and power detection settings, helping the cabinet remain useful when the projector system changes in the future.
- Travel distance adjustment with 1mm fine control
- Manual open and close operation
- Adjustable power detection threshold
- Useful when upgrading to a different compatible UST projector
Integrated cable management.
Pre-cut access routes between the side cabinets and centre section help organise power, HDMI and AV cables. This keeps the visible installation cleaner and helps the cabinet feel like furniture rather than exposed AV equipment.
- Pre-cut cable access between side cabinets and centre section
- Cleaner routing for power and signal cables
- Supports a tidy furniture-style AV installation
- Check cable bend radius and ventilation clearance before installation

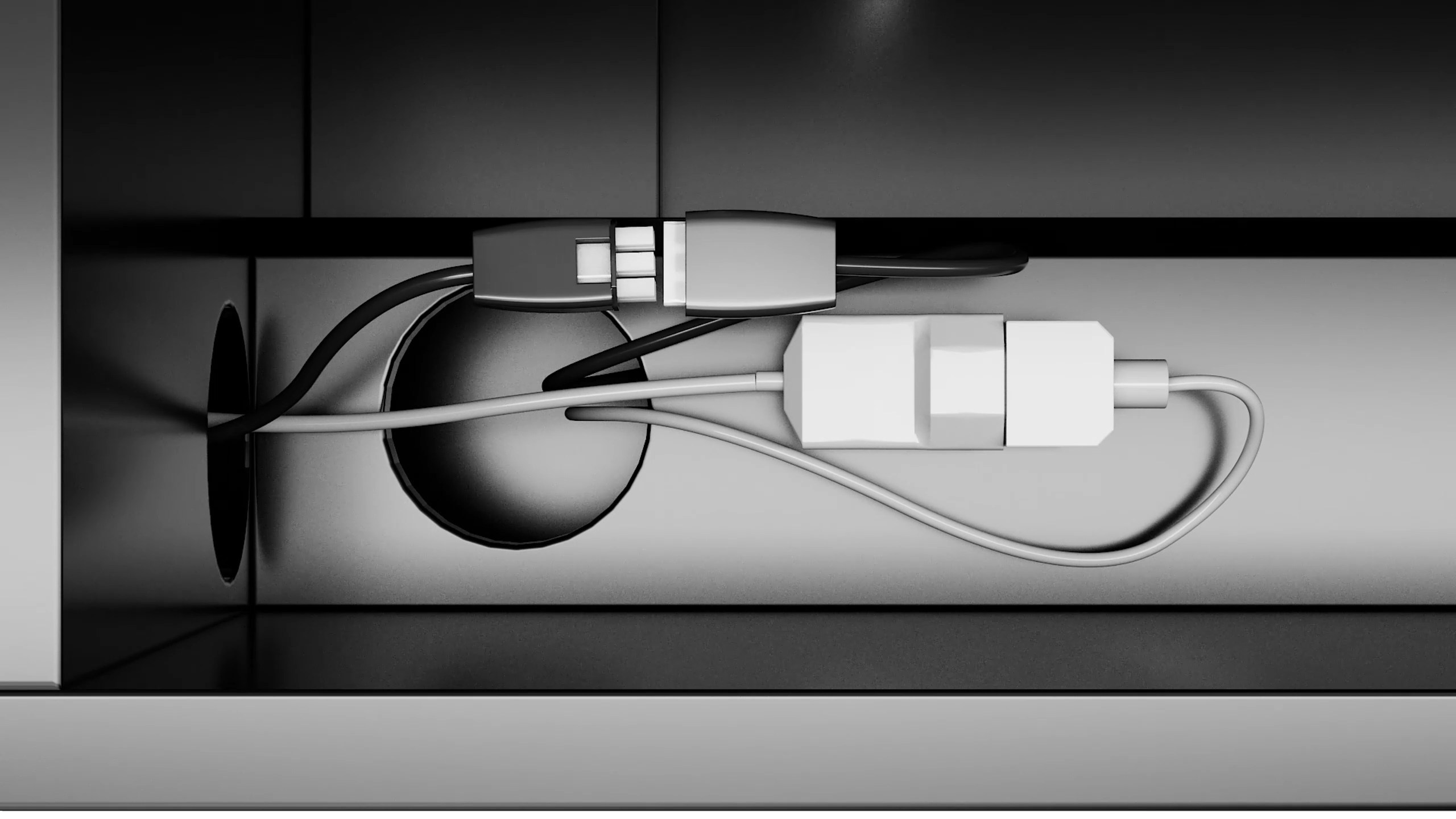

Cable routing
Internal routes help keep the projector, screen and AV equipment connections organised.

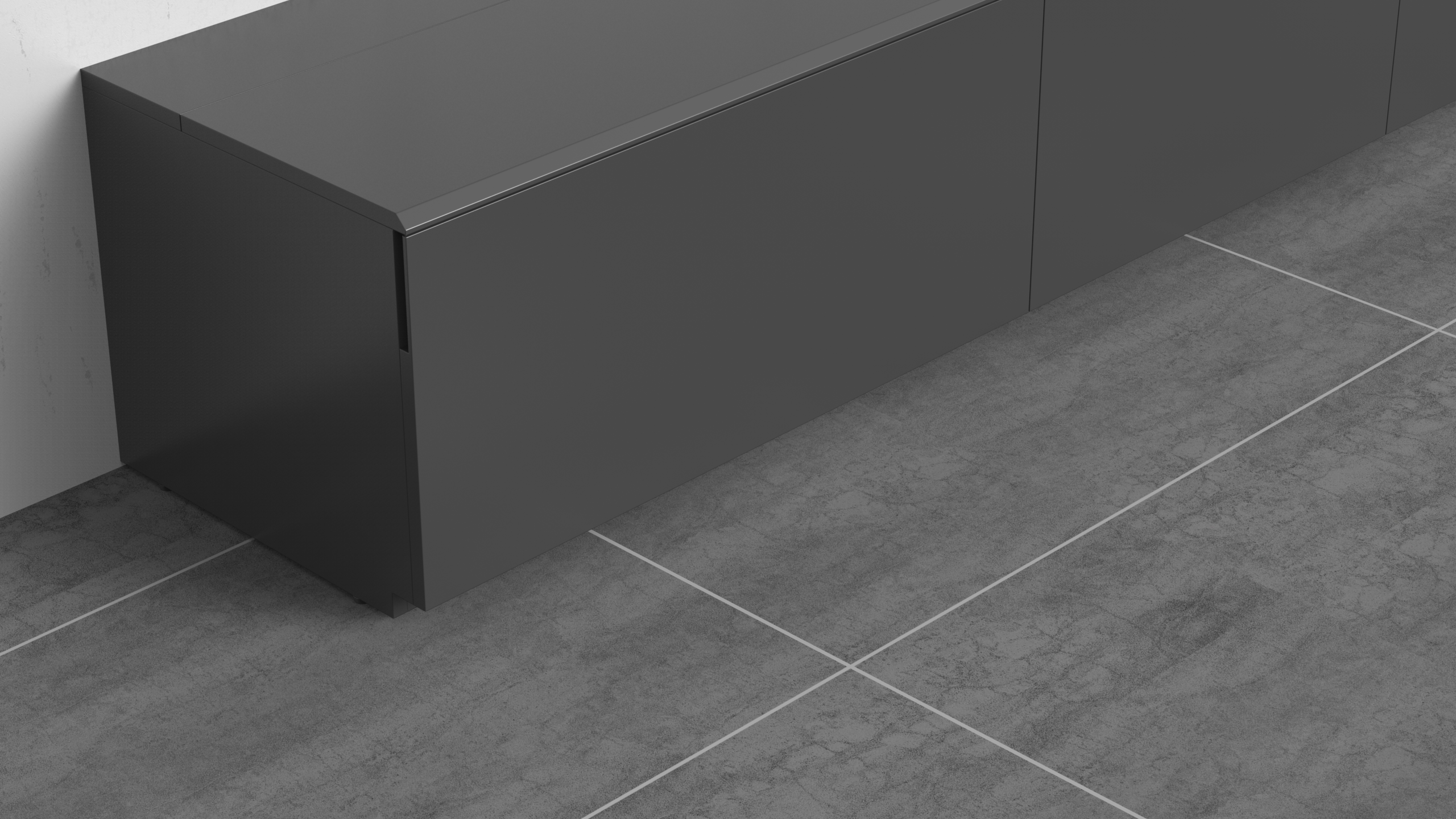

Furniture-friendly finish options.

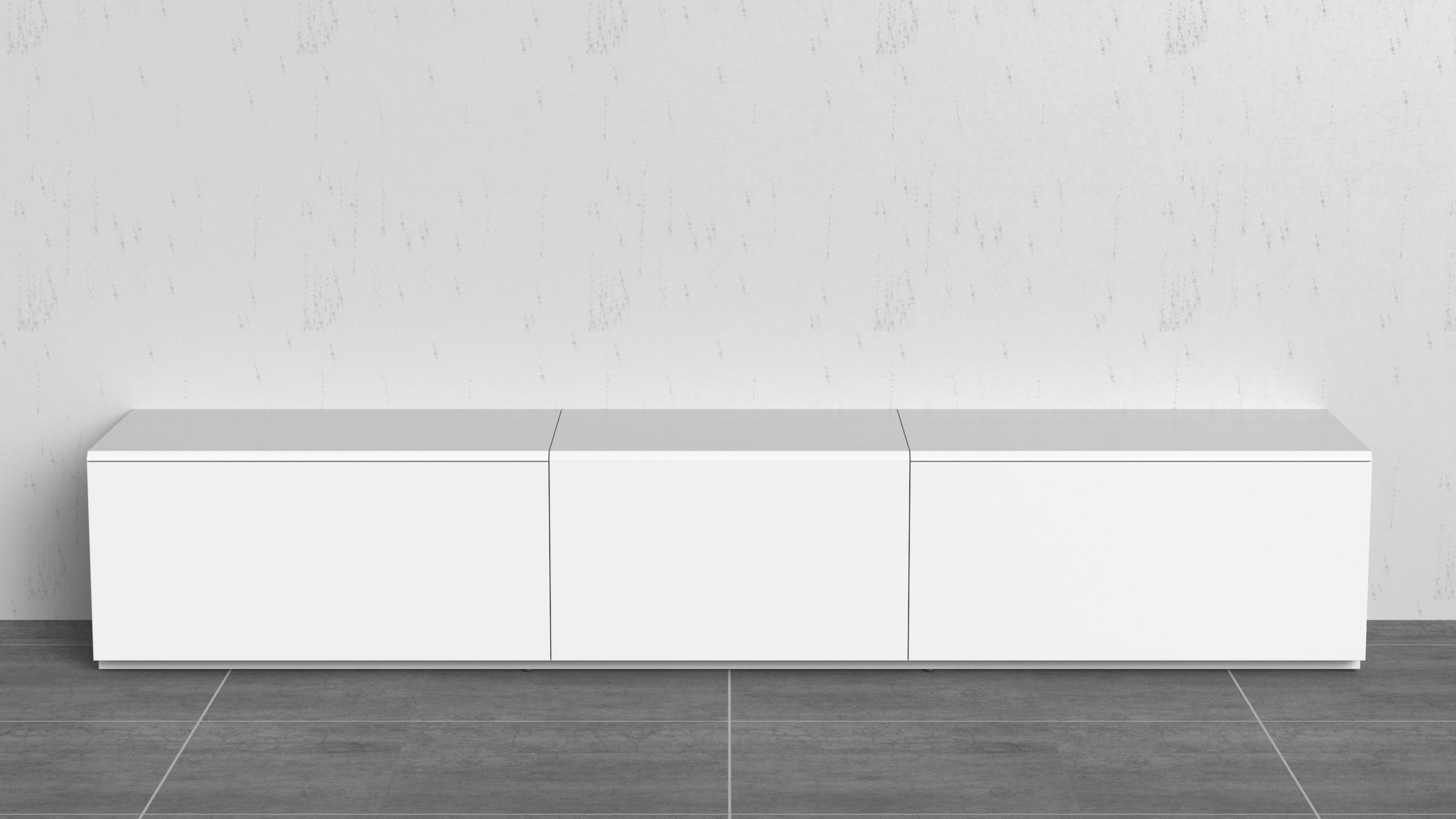

The MPC500R is available in Natural Oak, Walnut, Black Wood Pattern, Black Matt and White Matt finishes, making it easier to match the cabinet to the style of the room.
- Natural Oak
- Walnut
- Black Wood Pattern
- Black Matt or White Matt
Finish material options
Select the finish that best suits the cinema room, living room or AV installation space.
Product dimensions
Standard cabinet dimensions for 100″ and 120″ floor-rising screen configurations.
| Model | Intended screen size | Cabinet width | Cabinet depth | Cabinet height | Notes |
|---|---|---|---|---|---|
| MPC-500R-100 | 100″ floor-rising screen | 252 cm | 50 cm | 47 cm | Designed around a 100″ floor-rising screen |
| MPC-500R-120 | 120″ floor-rising screen | 300 cm | 50 cm | 47 cm | Designed around a 120″ floor-rising screen |
| Projector bay | Projector fitting space | 68 cm | 38 cm | Approx. 16 cm | Final compatibility depends on projector size, cable position and ventilation clearance |

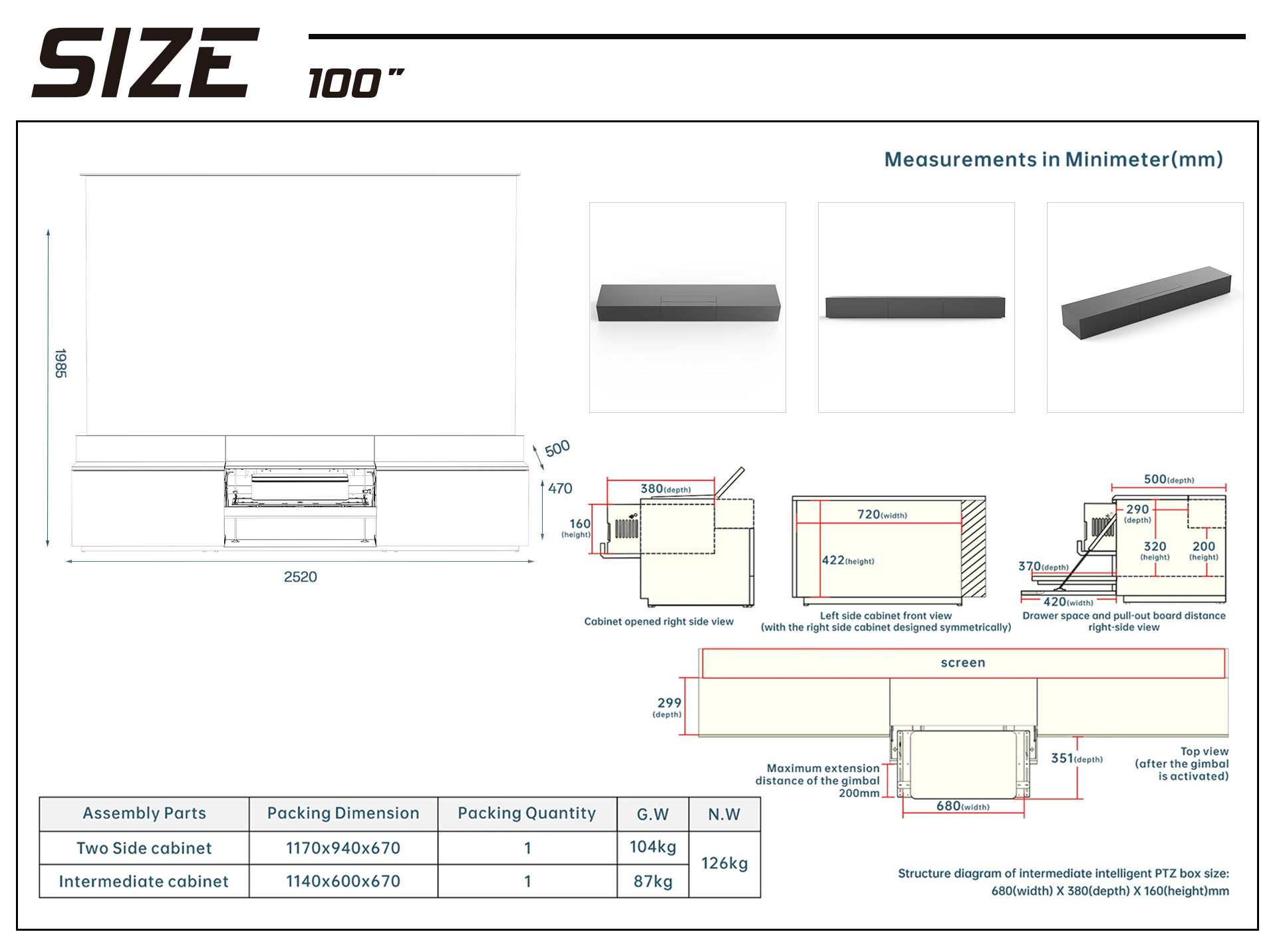

MPC500R 100″ dimension drawing
Use this drawing to check cabinet width, projector bay position and screen clearance for a 100″ setup.
MPC500R 120″ dimension drawing
Use this drawing to check cabinet width, projector bay position and screen clearance for a 120″ setup.
Choose MPC500R for a cleaner fully concealed UST cinema system.
The Maxlight MPC500R is best suited to UST installations where the projector and floor-rising screen should disappear when not in use. Its rotating mechanism, synchronised opening sequence, app control and modular furniture design create a clean premium cinema setup while keeping projector compatibility more flexible than a single-model cabinet. Delivery timing may vary by finish, screen size, stock position, production schedule and destination.
