A fully concealed smart cabinet for UST projector and floor-rising screen systems.
The Maxlight MPC580 is designed to hide your UST projector, floor-rising screen, cabling and AV devices inside a clean furniture-style cabinet. The motorised projector platform opens and closes quietly, while the projector platform, UST projector and motorised screen can operate as one synchronised cinema system.
Check projector size, throw ratio and screen setup before ordering
The MPC580 supports compatible UST projectors with a throw ratio between 0.20–0.25:1 and a maximum projector size of 750 × 390 × 205mm. Final compatibility depends on projector body size, cable position, ventilation clearance, screen choice and room layout.
Silent motorised platform with position memory.
The centre projector platform opens and closes softly using a built-in silent motor. Position memory helps the projector return to the intended viewing position, reducing daily adjustment and keeping the system easier to use.
- Adjustable motorised projector platform
- Position memory for repeatable placement
- Quiet opening and closing movement
- Compatible projector weight up to 30kg
One-key synchronised operation.
The MPC580 is designed as a synchronised cabinet system. A projector power command can open or close the projector platform, drawer, screen and lid cover together, creating a simple daily cinema routine.
- Projector platform, drawer, screen and lid cover work together
- Screen and projector remain hidden when not in use
- Motorised screen lid protects the floor-rising screen
- Clean flat top surface when the system is closed
Concealed AV design
The screen, projector and cabling sit inside the cabinet, keeping the room clean and furniture-like.
Cooling fans
Integrated quiet cooling fans help manage heat for high-power UST laser projectors.
Side storage
Side cabinets provide storage for AV equipment, with a pre-installed IR repeater for easier control.
Works with major floor-rising screen brands.
The MPC580 is designed to work with many major floor-rising screen systems on the market, including Vividstorm, AWOL Vision, Grandview, Celexon and Screen Innovations. This makes it a flexible cabinet choice for different UST screen combinations.
- For 100″ and 120″ floor-rising screen configurations
- Compatible with many major floor-rising screen brands
- Motorised screen lid for screen protection
- Designed for clean UST living-room cinema setups
Practical installation details.
Pinch-out rear panels help with tidy cable management, while the plinth skirting design gives the cabinet a cleaner built-in look and helps reduce visible dust gaps around the base.
- Pinch-out rear panels for cable routing
- Ample storage space in the side cabinets
- Pre-installed IR repeater for AV devices
- Plinth skirting for a cleaner room finish
Material and finish options.
The MPC580 cabinet uses formaldehyde-free MDF board with an aluminium drawer frame. Available finish options include Natural Oak, Walnut and Black Wood Pattern.
- Cabinet: formaldehyde-free MDF board
- Drawer frame: aluminium
- Finish options: Natural Oak, Walnut and Black Wood Pattern
- Available in 100″ and 120″ configurations
Furniture-friendly finishes
Choose a finish that suits the living room, cinema room or dedicated AV space.
Technical specifications
Key specifications for MPC580 100″ and 120″ UST cabinet configurations.
| Specification | 100″ configuration | 120″ configuration |
|---|---|---|
| Compatible projector type | UST projector | UST projector |
| Compatible throw ratio | 0.20–0.25:1 | 0.20–0.25:1 |
| Maximum projector size | 750 × 390 × 205mm | 750 × 390 × 205mm |
| Compatible projector weight | Up to 30kg | Up to 30kg |
| Cabinet overall dimensions | 2520 × 350 × 580mm | 3000 × 350 × 580mm |
| Finish options | Natural Oak, Walnut, Black Wood Pattern | Natural Oak, Walnut, Black Wood Pattern |
| Cabinet material | Formaldehyde-free MDF board | Formaldehyde-free MDF board |
| Drawer frame | Aluminium | Aluminium |
| Packaging | Approx. 110 × 75 × 75cm, 190kg | Approx. 110 × 75 × 75cm, 190kg |
MPC580 100″ cabinet dimensions
Use this drawing to check cabinet width, screen clearance and projector placement for a 100″ setup.

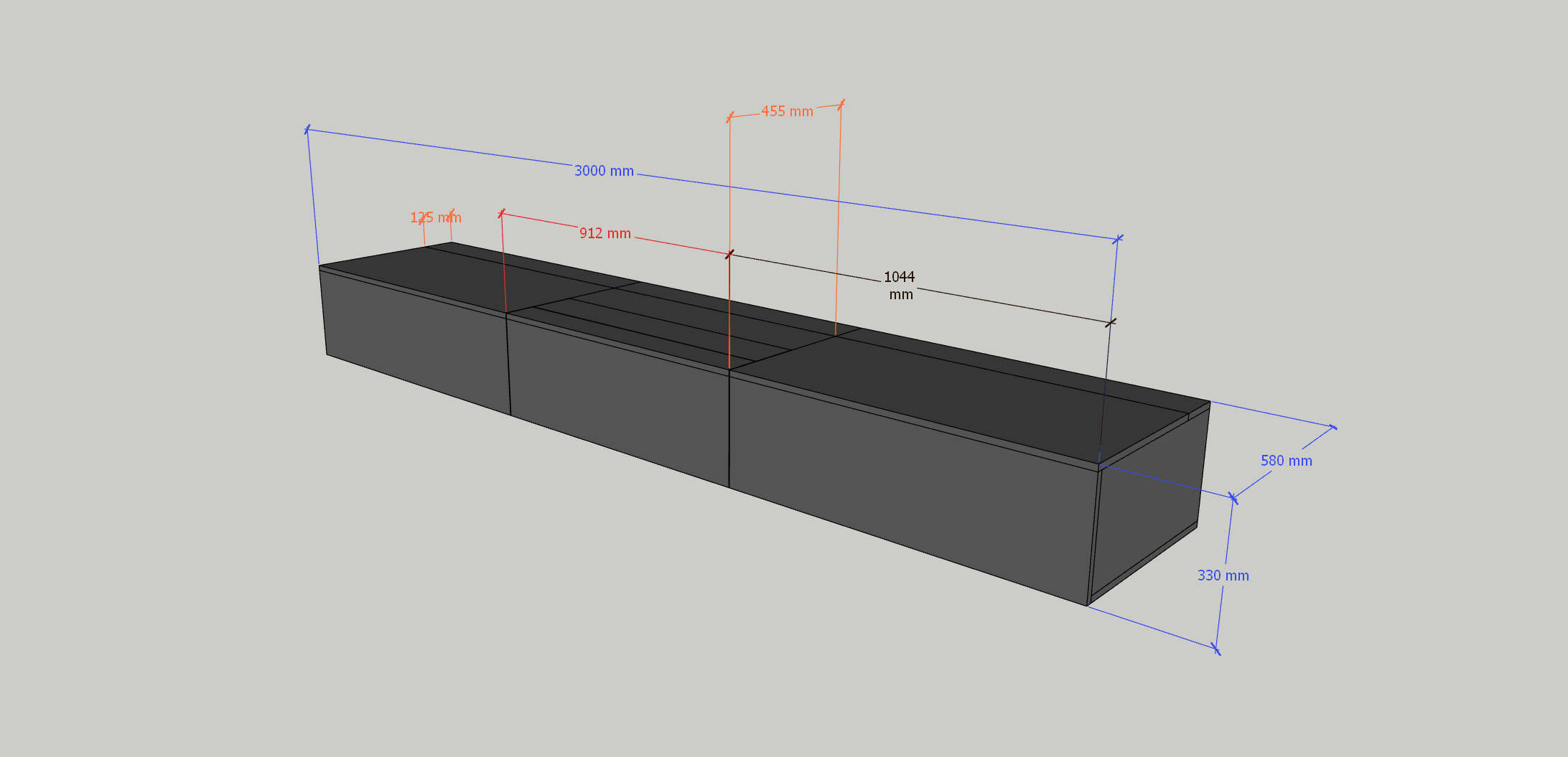

MPC580 120″ cabinet dimensions
Use this drawing to check cabinet width, screen clearance and projector placement for a 120″ setup.
Choose MPC580 for a concealed UST system with straight-line motorised projector movement.
The Maxlight MPC580 is ideal for UST installations where the projector, floor-rising screen and AV devices need to stay hidden until viewing time. It combines synchronised one-key operation, screen lid protection, cooling fans, cable management and furniture-style storage in one smart cabinet system. Delivery timing may vary by finish, screen size, stock position, production schedule and destination.
