CHiQ SCK Series ALR (Ambient Light Rejecting) Black Grid UST Projection Screen


  • Available in 100”/120” | Dedicated ALR screen for Ultra Short Throw Projectors
  • 0.6 Gain, 4K Ultra HD, and HDR Ready
  • Ambient Light Rejecting>90%
  • Viewing Angle: 170°
  • Fixed Frame with Rollable Screen
Request Price Matching

S-CK ALR Series Black Grid UST Projection Screen

Changhong S-CK series ALR (Ambient Light Rejecting) screen is specially designed for UST (ultra-short throw) projectors.

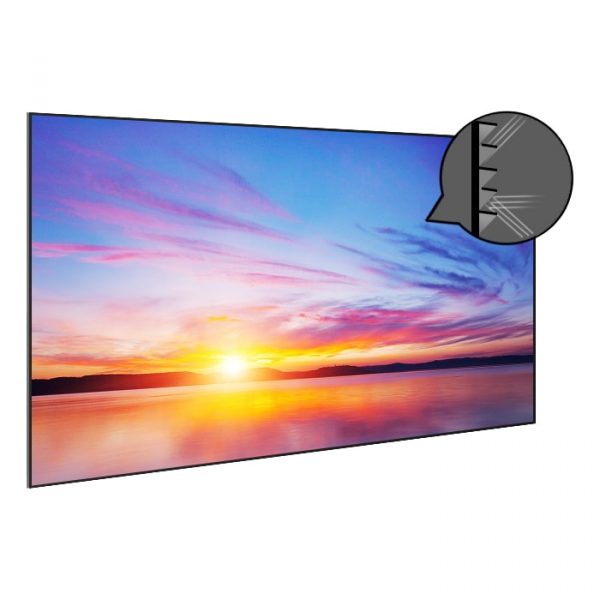

With the advanced optical lens system, S-CK series can  efficiently reject ambient light from the ceiling, and present the light from projector only. The lens system consists of multiple layers, each of them has the property to reflect angular light, the combination of these layers allows S-CK to focus on reflecting projector light.

Screen Gain – 0.6

Most of the other ALR screens on the market offers screen gain equals to 0.4 or less which reduced the projection brightness in order to enhance the image contrast. With Changhong’s advanced material technology, the S-CK series managed to offer the scree gain of 0.6 while enhancing the image contrast by 20 times.

Rollable Screen

The rollable screen of S-CK make the transportation and installation of the screen much more easier which also means lower cost for the screen.

170 Degree Viewing Angle

The viewing angle of the S-CK screen is 170 degree which is amazing, it means you can enjoy the high quality image from almost every angle in front of the screen.

20 Times More Screen Contrast

Ambient light present will degrade contrast and colour saturation. In higher ambient light situations, this can render the images unacceptable.

The S-CK series use a combination of optical filters and dispersion to tackle the issue. With S-FX series, the image contrast can be enhanced up to 20 times, colour saturation is also enhanced as the ambient light is reflected so you can see more detail with true colour.

Absolutely Flat

The fixed frame design of S-CK series ensure the screen is absolutely flat which is essential for UST projectors. Since the distance between the projector and the screen is so short, any tiny curve on the screen will distort the projected image, only a fixed frame design can avoid such distortion.

Type Fixed Frame with Rollable Screen
Format 16:09
Gain 0.6
Screen Material Black Grid
Compatibility Ultra-Short Throw Projectors
Available Screen Sizes: S100CK(100″), S120CK(120″)
Screen Size and Weight (wxhxd) (mm) 100″: 2245*1275*25, 9.06Kg
120″: 2686*1524*29, 15.5Kg
Viewing Angle 170 Degree
Packing Sizes (mm) & Gross Weight 100″: 1505*300*170, 12.88Kg
120″: 2750*290*150, 23.5Kg
Surface Characteristics Ambient Light Rejecting Surface
Front Projection Material
Support 4K, HDR Front Projection
Ambient Light Rejecting>90%

1 x CHiQ SCK Series ALR (Ambient Light Rejecting) Blackgrid UST Projection Screen
1 x Fixing Kit
1 x Installation Instruction
