Vividstorm S Pro
Probably one of the most popular motorised floor-rising screen solutions for ultra short throw projectors, the Vividstorm S Pro combines a tab-tensioned screen surface, UST ALR / CLR optical structure and a free-standing electric mechanism. It gives you a large cinema screen when you need it, then retracts safely into the floor case when not in use.

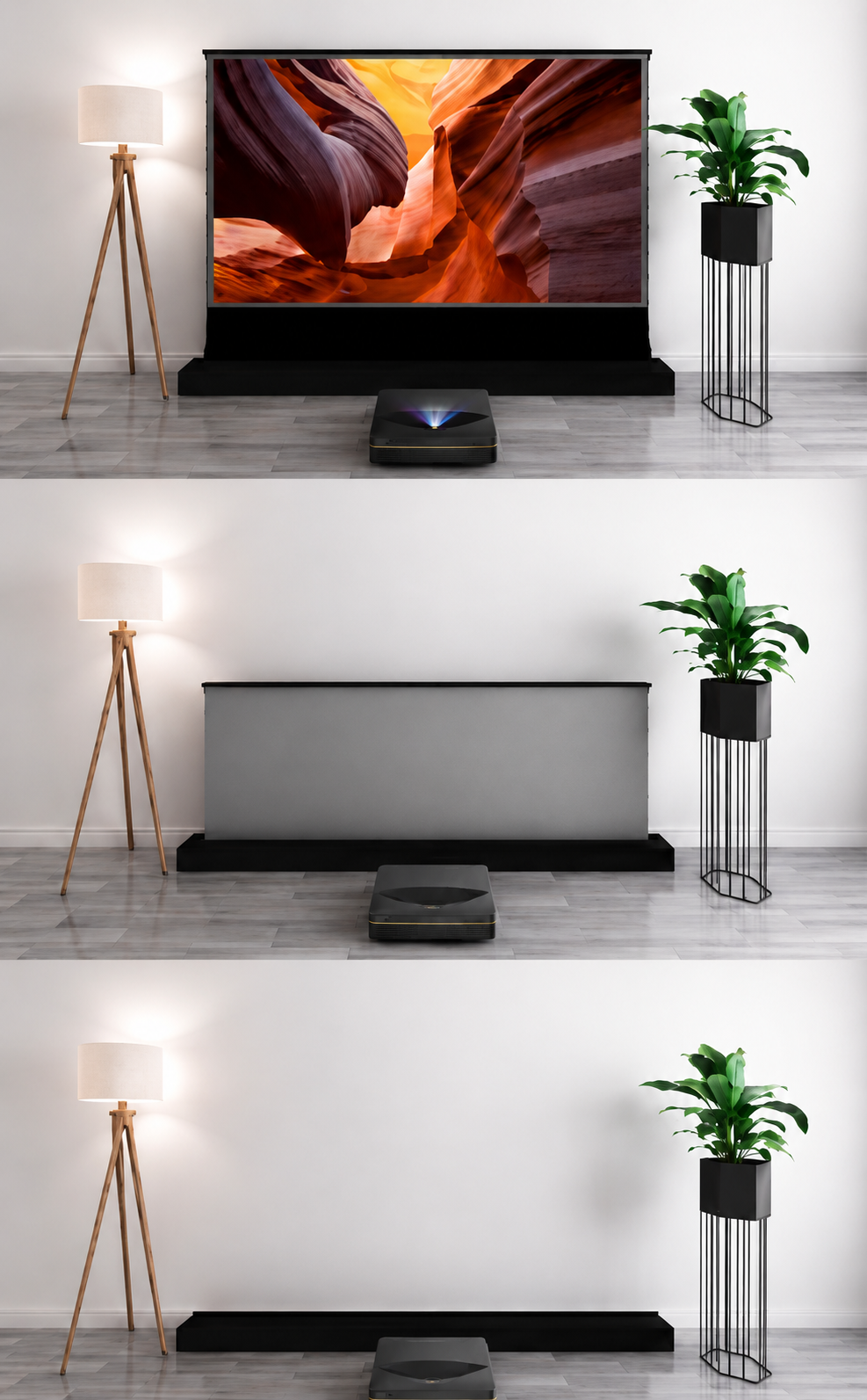

Motorised screen that rises from the floor
The S Pro is built for homes where a permanent fixed frame is not desirable. Place the screen on the floor, against the wall or behind a low cabinet, then raise it when the projector is in use. When the viewing session is finished, the screen retracts neatly into the case for safe storage and a clean room layout.
- Free-standing electric floor rising mechanism
- Plug-and-play installation with no ceiling cassette required
- Easy to move compared with a fixed-frame screen
- Available in black or white casing depending on selected variation
- Available in 72"–120" sizes on this product page
Why S Pro must be used with UST projectors
The S Pro screen material uses a lenticular, optical sawtooth structure designed to accept light coming steeply upward from an ultra short throw projector positioned below the screen. This helps reflect projector light toward the viewer while rejecting overhead ambient light. Because the optical structure is directional, it should not be used with standard long-throw or ceiling-mounted projectors.
Ambient Light Rejecting performance
Ambient light is one of the biggest enemies of projector image quality. The S Pro’s UST ALR material is designed to reject more than 97% of ambient light from above, helping maintain stronger contrast, deeper blacks and more vivid colour even when the room is not completely dark.
- Ambient Light Rejecting >97%
- 0.6 gain for improved black level and controlled brightness
- High contrast picture with deeper perceived blacks
- Designed for living rooms, media rooms and bright spaces
Tab tensioned for a flat picture surface
The tab-tensioned structure helps keep the screen surface flat and taut, which is especially important for UST projection. Ultra short throw projectors are very sensitive to screen waves or unevenness, so a flat surface helps preserve image geometry, edge sharpness and focus uniformity.
- Tab-tensioned screen structure
- Optimised for 4K / 8K, HDR and Active 3D projection
- 170° wide viewing angle for flexible seating
- Designed for front projection only with UST projectors
Projector-screen synchronisation
The S Pro series includes a wireless projector trigger as a free gift. When compatible, the trigger can be connected to the projector’s USB port so the screen rises automatically when the projector turns on and retracts when the projector turns off.
Product image gallery
Original S Pro product images reused from the existing product page.
Vividstorm S Pro video reviews
The original YouTube review videos from the existing product page have been kept.
Vividstorm S Pro size chart
The size drawing is important for planning cabinet width, wall space, screen height and viewing position. Check the size chart carefully before ordering, especially if your screen will sit behind furniture or inside a cabinet setup.
Vividstorm S Pro specification table
Motorised floor-rising ambient light rejecting screen for ultra short throw projectors.
| Product name | Vividstorm S Pro Electric Tension Floor Rising UST ALR Projector Screen |
|---|---|
| Screen type | Motorised floor rising tab-tensioned ALR screen |
| Recommended projector type | Ultra short throw projectors only; front projection only |
| Screen material | Black Grid UST ALR / CLR lenticular material |
| Format | 16:9 |
| Gain | 0.6 |
| Viewing angle | 170° |
| Ambient light rejection | More than 97% |
| Surface support | 8K / 4K UHD, Active 3D and HDR ready |
| Available sizes on this page | 72", 84", 92", 100", 110", 120" |
| Case colour | Black or white depending on selected variation |
| Installation | Floor standing by default; optional wall-mount bracket available for compatible installations |
| Controls | IR remote, RF remote, case controls and compatible wireless trigger support |
| In the box | Screen, IR remote, RF remote, power cord, adjust rod, USB charging cable for remote, wireless projector trigger gift and cleaning brush gift |
| Important note | Dedicated to UST projectors. Not compatible with standard / long-throw or ceiling-mounted projection angles. |
